Rulmeca introduces new generation of TM400 motorized pulleys
Friday, April 12th, 2019
Even more energy-efficient, service-friendly and safe

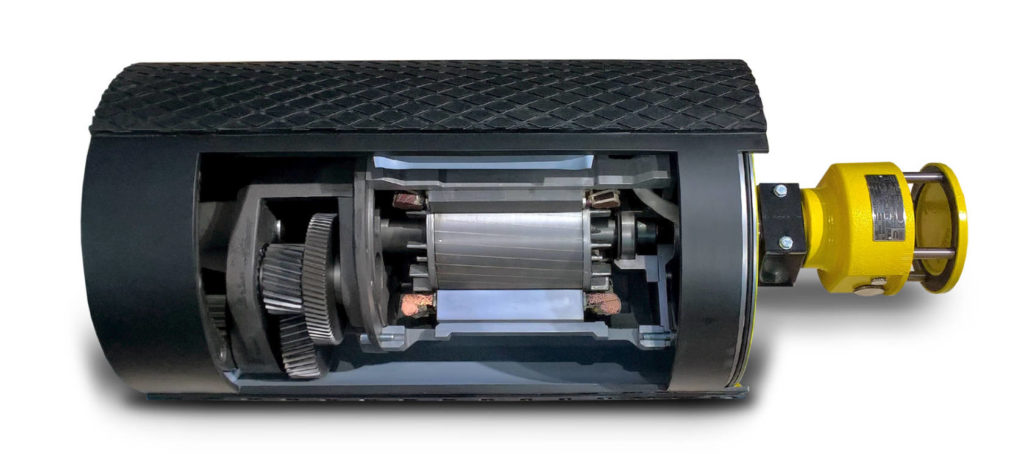

Rulmeca Germany presents its completely renewed TM400 motorized pulley generation at Bauma. Thanks to optimized components, the new motorized pulleys with a diameter of 400 millimeters are significantly more energy-efficient and service-friendly while offering even greater robustness and therefore plant uptime. Designed for the transport of bulk materials, the new motorized pulleys suit applications across many sectors – from light-duty belt conveyor systems in recycling, such as conveyors passing under magnetic separators; to medium-duty conveyor belts for mobile and stationary crushers, screeners and conveyors in the asphalt, cement and concrete industries as well as salt, sand and gravel works; to bulk material conveyors for the transport of grain and fertilizers.
The energy efficiency of the new TM400 motorized pulley generation, rated at 2.2 to 15.0 kW, has been increased by an average of 4.5% under peak loads thanks to more efficient electric motors with higher performance. Depending on the operating conditions, the resulting energy savings range from an impressive 12% to as little as 1%. When using the 15.0 kW class and working in two shifts with 90% utilization of nominal power, the average operating cost savings add up to EUR 467 per year, based on a comparatively cheap kilowatt-hour (kWh) rate of EUR 0.20. The eco footprint also improves substantially as CO2 output is reduced by 1.2 tons when using a conventional power mix.
In order to make the already highly reliable continuous operation of the bulk material handling systems even more fail-safe, the housing for the transmission components was optimized again, which increased the already high mean time between failure (MTBF) of the new Rulmeca TM400 motorized pulleys even further.
Thanks to greater component standardization, the new Rulmeca TM400 motorized pulleys have also become more service-friendly. Local service providers can now replace defective motor windings themselves, which minimizes downtime while making the global service network even more powerful and responsive. Rulmeca provides the required technical documentation and repair manuals upon request.
The new TM400 motorized pulleys also impress with a space-saving design where the drive is integrated into the conveyor tail drum. This is ideal for the harsh bulk handling environment as motorized pulleys are hermetically sealed, IP66/67 protected systems that keep the oil for lubrication and cooling in the engine, and abrasives such as debris and other wear-inducing materials out of the system. The TM400 motorized pulleys are therefore suitable for even the most challenging operating conditions and can be used in all common bulk material handling systems. They are easy and quick to install and virtually maintenance free.
The new TM400 motorized pulley generation will be available in series production starting from Q4 2019. Pre-orders are accepted as of now. Users can switch to the new generation without any design effort, so that existing systems also benefit from the new Rulmeca motorized pulleys. Further information on the design of the new Rulmeca motorized pulleys is available for download at: https://www.rulmeca.com/en/products_bulk/catalogue/6/motorized_pulleys/15/motorized_pulleys_for_belt_conveyors_bulk/76/motorized_pulley_400l_400m_400hhttp://www.rulmeca.de
