The energy demand increased dramatically owing to the evolution of industrial and domestic requirements and the associated decrease in oil and gas resources. This study aims to evaluate El-Maghara coal (with about 52 MT reserve) as a potential hydrocarbon source. The collect samples were subjected to petrographic, chemical analyses and Rock–Eval pyrolysis to investigate the detailed characteristics of this coal. Chemically, this coal is high volatile bituminous coal with high H and S content. The high H/C ratio indicates the high extraction yield of coal. The main maceral group in the studied samples is vitrinite (62.8%) followed by liptinite (31.3%) and inertinite (5.8%). The content of liptinite indicates the capability of this coal for petroleum production. Based on Rock–Eval Pyrolysis results and TOC content, the coal has excellent petroleum potential. The hydrogen index (HI) and H/C atomic ratio indicate the II kerogen type (oil prone) of this coal. This coal has Tmax and vitrinite reflectance values around 415.8 °C and 0.37%, respectively, indicating the immature stage of kerogen. The high reactive maceral content (94.2%), oil-yield (65.5%) and conversion from coal to oil (95.4%), indicated that this coal has a hydrocarbon generation potential for oil.

Introduction

The world overpopulation and associated urbanization, industrial and technological revolution increased the demand for energy. Coal is one of the first energy resources that is mined. The future is for coal as an energy source because oil and gas reserves are diminishing very fast, while coal reserves are plentiful1. Based on the IEA2, coal will continue to be the main energy source for the steel industry in 2050. So, the understanding of coal characteristics and improvement of the comprehensive parameters of coal for metallurgical applications is an important issue3.

Coal occupies the second place worldwide as an energy source after oil and natural gas4. The rapid growth of technology and population in the last decades has led to an increasing demand for energy sources (liquid and gaseous hydrocarbons) in most countries of the world5. To fill the shortfall in petroleum and natural gas, start searching for unconventional sources of hydrocarbons such as Coalbed methane, oil shale, tar sands and gas hydrate6,7,8. It shows that many countries, such as the USA, Indonesia, China and Australia, have managed to generate hydrocarbons from these sources9,10,11.

El-Maghara coal seams in Sinai follow the Jurassic age and consists of about 11 lenticular seams, including a main economic layer with a thickness ranging from 1.3 to 2 m. Coal ash minerals consist mainly of quartz with some calcite, anhydrite and hematite. Maghara coal can be classified as medium volatile bituminous coal. Coal with high sulfur content, especially pyritic sulfur, indicate a possible marine intrusion after the deposition of the peat precursor. The bituminous rank of El-Maghara coal with its volatile matter content (> 37.8%) supports the generation of methane from this coal7. Low rank coal (lignite) have exploited for hydrocarbon potential in India12,13,14,15,16. Also, sub-bituminous per-hydrous coals with high H/C ratio of Indonesia possess high conversion and oil yield17. The chemical study showed that El-Maghara coal is distinguished from the worldwide coal by its low concentrations of environmentally harmful trace and rare elements18. El-Maghara coal petrographic study revealed the dominance of vitrinite, followed by liptinite and inertinite, while the mineral matter includes mainly clay, quartz, and pyrite19,20. This organic and mineral composition indicated the predominance of anoxic waterlogged conditions in the mire during peat formation19.

El-Maghara Activated coal shows effective removal of Pb and Zn in alkaline medium21. El-Maghara coal was used to produce Nano-activated carbon (alkaline and thermal activation), which showed effective results as an adsorbent for removing methyl orange dye from industrial wastewater22.

Coal is mainly a source of gas, but it can also be a source of oil under some circumstances23. The importance of coal as a source of petroleum has increased dramatically in recent decades, and many studies worldwide have pointed out many new approaches regarding the oil and gas formation of humic coal (e.g. Refs.24,25,26,27,28,29). Karayigit et al.30 pointed out the importance of using complete physical and chemical analyses of low rank to avoid misinterpretations of source rock. In the current work, petrographic, proximate, ultimate and Rock–Eval pyrolysis analyses were applied to interpret the possibility of hydrocarbon generation from El-Maghara coal.

Previous studies have focused on the general characteristics (petrography, calorific value, proximate and ultimate data), reserves, geological settings and depositional environment of El-Maghara coal (e.g. Refs.19,31,32,33). This study, mainly, aims to identify the properties and hydrocarbon generation potential of El-Maghara Jurassic coal, North Sinai, Egypt. It also, aims to provide an organic geochemical assessment of these coal seams using proximate and ultimate analyses, petrographic, total organic carbon (TOC), vitrinite reflectance (Ro) and Rock–Eval pyrolysis data.

Materials and methods

The study area

El-Maghara area is located approximately in the center of North Sinai, about 200 km northeast of Cairo, between longitudes 33°10′ and 33°40′ E, and latitudes 30°35′ and 30°50′ N. It is a rectangular sedimentary basin with an area of about 1300 km2 (Fig. 1a). The region occupies great scientific and economic importance because it contains the ideal Jurassic section in Egypt as well as economic coal deposits. Therefore, it has been subjected to many geological studies (e.g. Refs.31,32,34,35). Al-Far31 divided the Jurassic sediments in the region into six formations (Fig. 1b) and described them in detail. Safa Formation has particular importance because it contains the economic coal layer, the geological reserve of coal is estimated at 52 million tons32.

figure 1
Figure 1

El-Maghara coal mine has faced many problems since its establishment in 1964. The mine was closed due to the 1967 war for 15 years, which led to the destruction and collapse of the mine facilities. In 1982, mine rehabilitation operations began with the help of the British company, Babcock, but the mine was closed again in 2005 due to some technical and financial problems. One of the reasons that led to the closure of the mine is that coal can’t be coked except by mixing it with a higher grade of coal, and that Egypt does not contain coal-fired power stations37. However, due to the problem of energy shortage facing many countries in the world, the use of El-Maghara coal to generate energy or liquefying it to obtain oil and gas using modern technologies should be reconsidered.

Physico-chemical analyses

The proximate and ultimate analyses were performed according to ASTM procedures in the Egyptian Mineral Resources Authority; Moisture38, volatile matter39, ash40, calorific value41, total sulfur42, CHN43, fixed carbon and oxygen were calculated by difference. The concentrations of measured proximate and ultimate analyses were calculated based on instructions in ASTM44 and Suggate45.

Rock–Eval pyrolysis was used to measure free hydrocarbons (S1 = mg HC/g rock), residual hydrocarbon generating potential (S2 = mg HC/g rock), free CO2 (S3 = mg HC/g rock) and temperature during maximum generation of hydrocarbons at S2 (Tmax °C) of the coal sample. LECO SC632 was used for TOC at Stratochem service lab, Egypt. These parameters were used to calculate the hydrogen index (HI), oxygen index (OI), potential yield (PY) and production index (PI)46.

HI=100× S2/TOC

OI =100× S3/TOC

PY = S1 + S2

PI=S1/(S1/S2).

The figures were processed with Adobe Illustrator CS5 software for re-drawing and enhancement47. In the present study, organic petrography is used to explore the maceral content and thermal maturity in 6 samples that were collected from the coal seam (Table 1). The analysis is conducted in the whole rock samples that were consolidated in epoxy resin and polished according to the procedures indicated in the ASTM48. The maceral composition is quantified by calculating the area percentages of each type from the photomicrographs by Image J software in incident light including white and fluorescence modes. The thermal maturity is measured using the procedures of ASTM49 to calculate the vitrinite reflectance (Ro %). The maceral content, especially reactive macerals (RM), can be used to determine oil yield and conversion of coal into hydrocarbon50,51 using the following formulas52.

Conversion (%)=0.2RM +76.6

Oil − yield (%)=0.22RM +44.8

RM= Vitrinite%+ Liptinite%.Table 1 Coal measured and calculated data of petrography, proximate, ultimate and Rock–Eval.

Full size table

Results and discussion

Proximate and ultimate analyses

The proximate analysis result of El-Maghara coal (Table 1); indicated low moisture content (2.48%, as received) and medium ash yields (9.23%, as received), high calorific values (32.59 MJ/kg, on dry, ash-free basis). The coal samples display high volatile mater (44.35%, as received) and fixed carbon (43.94%, as received) values. This moderate ash content may have resulted from the process of mixing mineral materials with organic materials during the sedimentation process due to geological factors such as the rate of sedimentation, changing water levels, and tectonic processes53. Edress et al.19 pointed out the sea level fluctuations and associated water table changes during coal deposition in El-Maghara. Also, the microscopic composition of the studied coal assesses in the preservation of mineral mater because vitrain is characterized by cleats as well as micro-fractures and pores, which can trap mineral matter54.

The results of the ultimate analysis, on a dry, ash-free basis, of El-Maghara coal are listed in Table (1). The studied coal samples have high C (68.82%), H (7.01%), total S (4.92%) and N (1%). The high S content of this coal is related to its depositional environment, where this coal was deposited in marine anoxic conditions19. This is confirmed by the recorded sulfur minerals; pyrite and copiapite33. The coal content of H controls the physical properties of OM; the transform of OM from solid to liquid to gas increases with increasing H content23. The H content has a positive correlation with Rock–Eval S1 (r = 0.68) and S2 (r = 0.83). The atomic ratio of H/C was about 1.22 and O/C was 0.07 in the El-Maghara coal (Table 1). This relatively high H/C ratio may be resulted from the abundance of H-rich macerals; derovitrinite and liptinite. The high H/C ratio is good indicative of the high extraction yield of coal55. These atomic ratios, H/C and O/C, were used by Van Krevelen56 to determine kerogen type and hydrocarbon generation potential. The studied coal samples were plotted between Types I and II kerogens on the Van Krevelen diagram (Fig. 2a), indicating the richness of these samples with H (perhydrous coal). The H/C atomic ratio can be used for kerogen type discrimination; H/C > 1.4 indicates type I (oil-prone), 1 < H/C < 1.4 indicates type II (oil-prone), 0.4 < H/C < 1 indicates type III (natural gas-prone) and H/C < 0.4 indicates type IV (barren)57. Accordingly, the studied coal samples, with H/C = 1.22, are of type II kerogen and have the potential for petroleum production. Also, the atomic H/C—O/C plot (Fig. 2b)58 can be applied to determine the studied coal rank; the studied coal samples have bituminous rank.

figure 2
Figure 2

Petrography

The maceral composition is distinguished by diversity of components that comprise vitrinite, liptinite and inertinite (based on dry mineral matter free). The dominant maceral is vitrinite including detervitrinite (9–60%), gelovitrinite (2–43%) and telovitrinite (3–10%) (Table 1; Fig. 3f–h). Liptinite is exclusively of terrigenous composition including sporinite (1–5%), cutinite (1–13%), suberinite (1–5%), resinite (1–7%), exsudatinite (0–6%), alginite (0–6%), liptodetrinite (2–13%) and bituminite (0–14%) (Table 1; Fig. 3a–g)). The liptinite macerals are characterized by bright strong fluorescence colors that ranges from yellow to light orange (Fig. 3). Inertinite occurs in minors, including fusinite (0–14%), funginite (1–15%) and secretinite (0–4%) (Table 1; Fig. 3g). The vitrinite reflectance is measured in a sample (5C) and (3C). The mean value is 0.37, which indicates thermally immature coal. This in accordance with the light and bright fluorescence colors of liptinite.

figure 3
Figure 3

The coal content of liptinite is in forward proportion with the H%, HI and PY (Fig. 4), because liptinite macerals are H-rich and contain more aliphatic compounds than vitrinite and hence more oil-prone60. The presence of more than 12% liptinite is responsible for the recorded high HI (> 350 mg HC/g TOC) (Table 1)61.

figure 4
Figure 4

Coal rank

Coal rank refers to the coal organic matter metamorphism (coalification), or coal maturity and measure of the degree of coal evolution from peat to meta-anthracite62. High rank coal has high Ro, C and C/H ratio, and low VM, and vice versa3. So, coal rank can’t be determined through a single parameter but by using many physical and chemical parameters; Ro, moisture, calorific value, volatile matter and fixed carbon. The plotting of these parameters on the ECE-UN63 and ASTM44 systems (Fig. 5a,b) indicated medium to high volatile bituminous coal44 which is correspondence to medium rank bituminous coal63. This is confirmed by the plot of calorific value-volatile matter (Fig. 5c) of Suggate45. Accordingly, this coal is suitable for producing coal bed methane53,64,65,66. The fuel ratio (FR) of the studied coals was around 0.99, placing the samples at the bituminous rank based on Frazer’s67 classification. These results are in agreement with Edress and Abdel-Fatah68.

figure 5
Figure 5

Organic geochemistry

Table (1) illustrates the results of Rock Eval pyrolysis (S1, S2, S3 and Tmax), TOC, and Ro, which can be used to characterize coal organic richness and ability to generate hydrocarbons69,70. The values of these parameters were 5.2–7.8 mg HC/g rock, 206.7–265.4 mg HC/g rock, 8.9–10.8 mg HC/g rock, 412–421 °C, 58.1–67.8 wt%, 0.4; respectively. Based on the S1 (> 4), S2 (> 20) and TOC (> 4) the studied samples are of excellent petroleum generative potential (Table 1). The hydrocarbon richness value (S2/S3) of El-Maghara coal samples ranged between 20.39 to 26.65, which indicates the definite possibility of generating oil from those samples (Fig. 6a). The results of the study (S1, S2 and TOC values) showed that the organic matter in coal is indigenous hydrocarbons, not migratory ones (Fig. 6b,c).

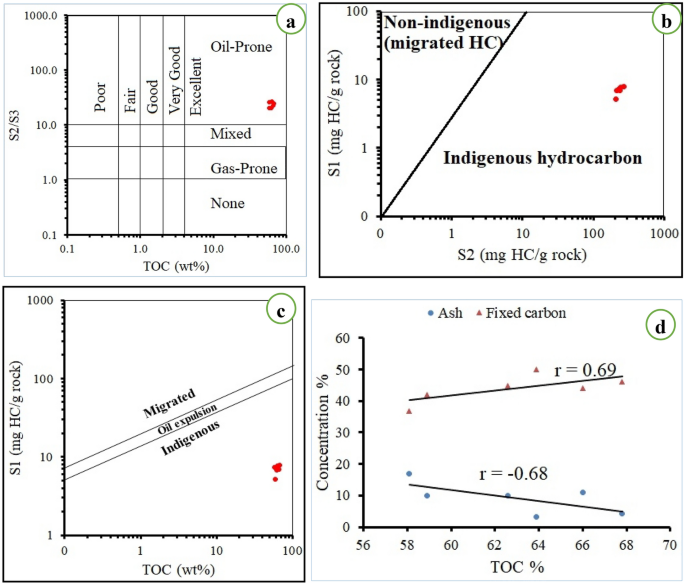

figure 6
Figure 6

The positive correlation of TOC (r = 0.69) with the fixed carbon (Fig. 6d) infers that both of them play an essential role in determining how well coal can be used as a potential source rock. As known, high rank coal has high fixed carbon and somewhat high TOC. On the contrary, the inverse correlation between TOC (r = − 0.68) and ash (Fig. 6d), indicates that the increase of mineral matter during the coal deposition process implicitly decreases the availability of organic carbon and thus negatively affects the ability of coal to produce hydrocarbons.

Thermal maturity

The thermal maturity of kerogen plays an essential role in determining the ability of source rocks to generate hydrocarbons as well as the types of hydrocarbons (gas or oil). The thermal maturity of source rocks is determined by several maturity indicators, such as Tmax values, production index (PI), and vitrinite reflectance (Ro)71,72,73. The Tmax values in El-Maghara coal samples ranged from 412 to 421 °C, which indicates the immaturity of kerogen, as identified from Fig. 7. This is confirmed by the low values of Ro, which were less than 0.6, as well as the low production index values, which ranged between 0.02 and 0.03.

figure 7
Figure 7

Hydrocarbon generation potentiality

The hydrocarbon generation ability of kerogen is assessed in this study from the petrographic composition, kerogen type, thermal maturity, genetic potential, HI values, and TOC content. The oil generation potential mainly depends on the liptinite content in the source rock; petroleum production requires > 15% liptinite23,25,74. The studied coal samples have liptinite content of around 31.3%, indicating the capability of this coal for petroleum production. Coal liquefaction potentiality is controlled by its content of reactive macerals (vitrinite and liptinite)14,75. Coal with Ro < 0.8, reactive macerals > 60% and volatile component (daf) > 35% is suitable for liquefaction and gasification76,77. The studied samples composed mainly of reactive macerals, varying from 90 to 98 wt % (Table 1), indicating their suitability for hydrocarbon generation. In addition, the calculated conversion (94.6–96.2%) to oil and oil yield (64.6–66.4%) (Table 1), illustrates the liquid hydrocarbon generation potential of this coal78.

The ternary plot of maceral composition was applied to deduce the kerogen and hydrocarbon type. The samples are mainly of Vitrinite (62.8%) followed by liptinite (31.3%), so the samples contain type III kerogen (Fig. 8a) and have excellent probability for hydrocarbon generation; oil and gas (Fig. 8b).

figure 8
Figure 8

The hydrocarbon potential of coal depends mainly on the amount and type of organic matter and its thermal maturity80,81. The type of kerogen depends on the source of the organic matter, which largely controls the possibility of generating hydrocarbons and its type; Type I and II come from algae and are considered oil-prone, while type III comes from higher plants and is considered gas-prone57. Since the organic matter is mainly composed of C, H and O, the kerogen type in coal can be determined using the hydrogen index (HI)82.

El-Maghara coal recorded values ranging from 343.39 to 397.83 mg.HC/g.TOC For HI, which shows that the kerogen in those samples is type II, as illustrated in Fig. 8c. This is confirmed by the S2-TOC (Fig. 8d), which indicates that these samples can produce oil. The high content of coal from hydrogen-rich macerals (detrovitrinite and liptinite) also indicated the ability of this coal to produce oil83.

The PY values of El-Maghara coal samples were 211.9–273.2 mg HC/g rock, indicating their excellent hydrocarbon generation efficiency based on Hunt’s scale84, which is confirmed by the PY-TOC diagram (Fig. 8e). The relationship HI-TOC (Fig. 8f) also indicated that El-Maghara coal samples represent a source of gaseous hydrocarbons in addition to oil. The high H content of the studied coal (H > 5), H/C ratio > 0.9 and liptinite content > 15%, indicate its great capability to generate oil and gas23. The current results support the importance of using petrographic, proximate and ultimate analyses, inside Rock–Eval pyrolysis results, as concluded by Karayigit et al.30, for a more accurate interpretation of source rock hydrocarbon generation.

Comparison of the current results with others

The results of the studied coal samples were compared to the previous studies on El-Maghara coal (Table 2), and agreement was observed between the current and previous results, which indicates the consistency of the coal layer in the mine and the accuracy of the studies and analyses. It was noted that previous studies didn’t use the Rock–Eval pyrolysis technique to determine the amount of organic matter and the extent of the possibility of producing hydrocarbons from this coal.Table 2 Comparison of the current results with previous studies from Egypt and worldwide.

Full size table

El-Maghara coal was also compared with coal from Turkey, India, China and Columbia. It was observed that El-Maghara coal is nearly identical with the Indian coal. It has more volatile matter than Turkey, India and Columbia as well as less TOC than India, China and Columbia and has PI equal to Turkey and China, less than India, and more than Columbia.

Conclusion

El-Maghara coal mine is located in North Sinai and contains a geologic reserve of 52 million tons. The mine was closed due to the poor quality of coal and its high sulfur content. The results of the current study indicate that the coal contains a high amount of volatile matter and is of the bituminous type and consists mainly of vitrinite macerals. The elevated hydrogen content in this coal indicates its perhydrous nature. The high H/C ratio, attributed to the abundance of H-rich macerals (derovitrinite and liptinite), is a good indication of the high extraction yield of this coal. The reactive macerals content represents about 94.2% of the studied coal samples, of them 31.3% liptinite indicating the suitability of El-Magara coal for liquefaction and gasification. Generally, the high H content of the studied coal (H > 5), H/C ratio > 0.9 and liptinite content > 15%, indicate its great capability to generate oil and gas. The amounts of organic matter in this coal are high (TOC = 62.9% and S2 = 232.1 mg HC/g rock), but immature (Tmax = 415.8 °C). The S1, S2 and TOC values indicate the indigenous organic matter in coal. The hydrocarbon richness value (S2/S3) of El-Maghara coal samples points out the possibility of generating oil from those samples. However, the current study showed that El-Maghara coal has the potential to generate hydrocarbons; oil and gas. The current study also clarified the importance of combining petrographical, chemical and physical studies of low-grade coal to obtain more accurate results about the properties, rank and coal ability to produce energy.
